How to Put Together Your HotShot™ Cartridge Filling Machine

How to Put Together Your HotShot™ Cartridge Filling Machine

The CoolJarz™ HotShot Oil Cartridge Filling Machine is one of the most popular filler machines on the market. If you don’t have one yet, you’re probably wondering how easy it is to set up. Luckily the process isn’t difficult and you’ll be filling cartridges in no time with this easy set up guide.

Setting Up Your Cartridge Filler

If this is your first time using the CoolJarz™ HotShot you’ll be going through a few procedures to have it working optimally at first. One of the first steps will be adding in the bottle of blue heat transfer fluid into the Anova reservoir. Once you have poured the entire bottle, slide the Anova heating element into the reservoir.

CoolJarz™ HotShot™ A-10 Oil Cartridge Filling Machine - Fast, Reliable, Precise, Nearly ZERO Waste! 3-5 screenshot

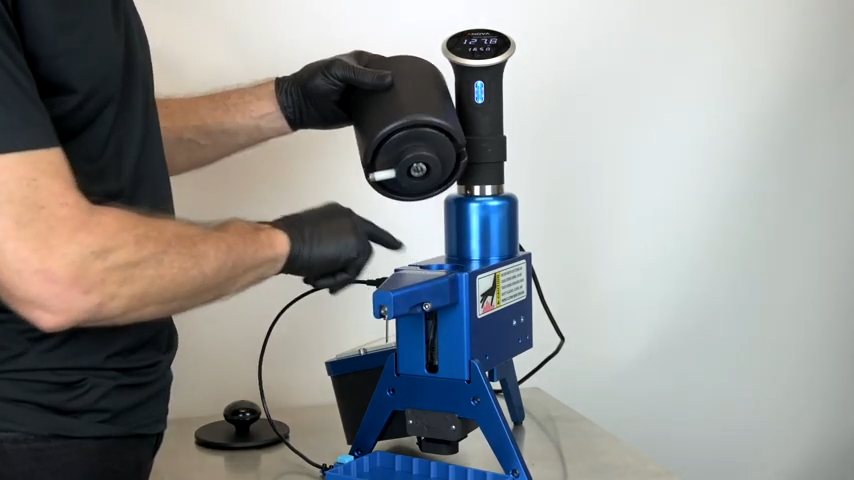

Next, mount our black non-stick oil tank onto the A10 system. You can do this by aligning the white tube at the bottom of the oil tank into the the allocated spot on the A10 system and turning to lock.

CoolJarz™ HotShot™ A-10 Oil Cartridge Filling Machine - Fast, Reliable, Precise, Nearly ZERO Waste! 3-58 screenshot

Afterwards, you’re going to be installing the Injection Needles onto the A10 System. We have couple different needle sizes included with the A10. We recommend going with the shorter of the needles if possible for your oil to lessen pressure on the internal system. Installing the needle simply requires hand screwing it into the nose of the A-1o and tightening it with the blue plastic thumb socket within the kit.

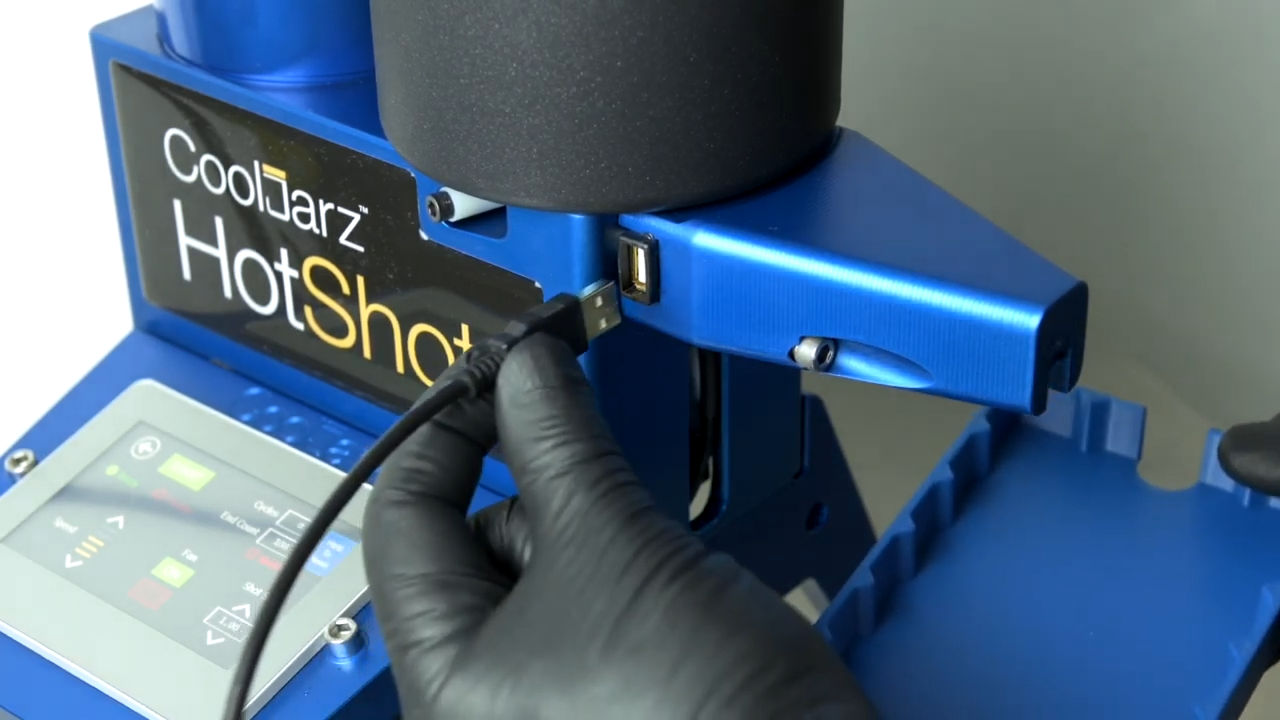

Next up, is installing your selected fill switch. The Hotshot 1500 has two options for fill switches. The first is hand button operated speed tray, or the foot activated fill pedal dispenser. Each can be connected to the USB port located on the left side of the A-10.

CoolJarz™ HotShot™ A-10 Oil Cartridge Filling Machine - Fast, Reliable, Precise, Nearly ZERO Waste! 4-34 screenshot

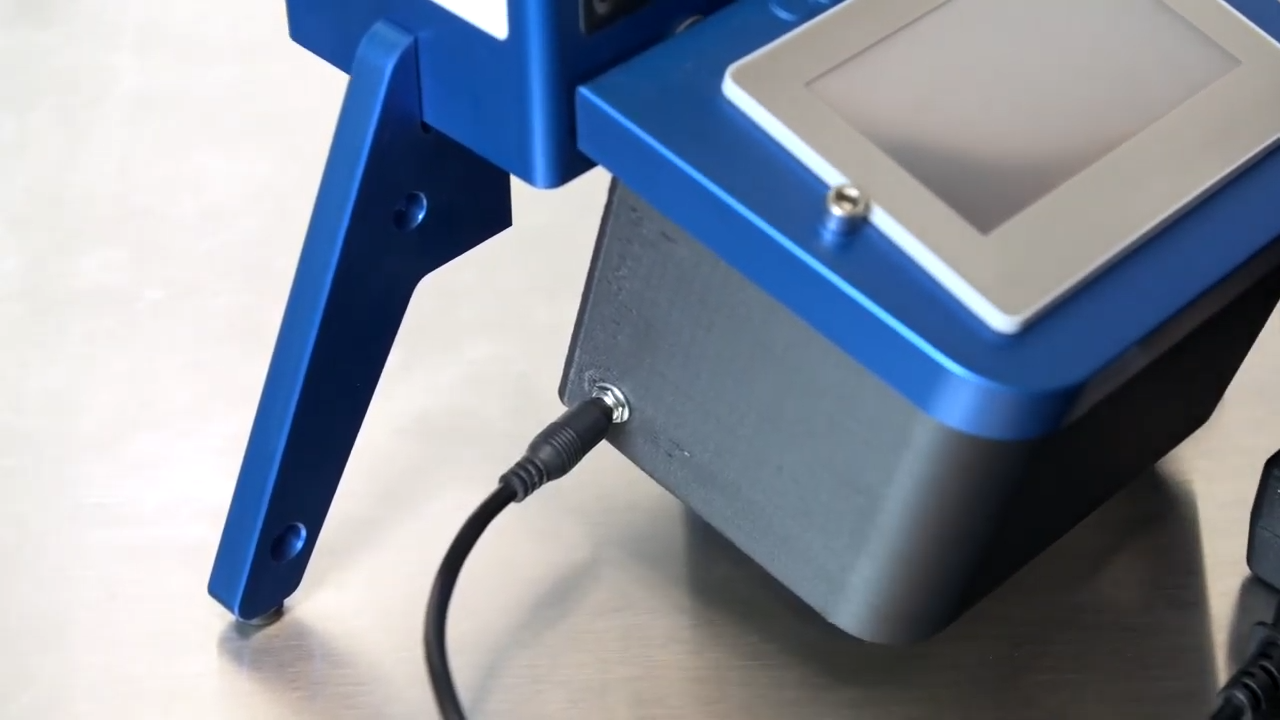

Finally, connecting the power source. Plug the power transformer into the rear of the A-10. Next, plug the transformer and the Anova into a tri-pronged power surge strip that is rated at least 10 Amps.

Conclusion

There you have it, that’s all you need to do to put together your A-10 HotShot cartridge filler machine. The next step is going to be calibrating the settings of your cartridge filling machine. Don’t worry, that process is as simple as this one. To view a tutorial on that, click here!

If you haven’t gotten your A-10 HotShot yet and would like to purchase one now, Click Here! If you have any questions about any of CoolJarz™’s products or anything else, Contact Us! We’ll be happy to help!
